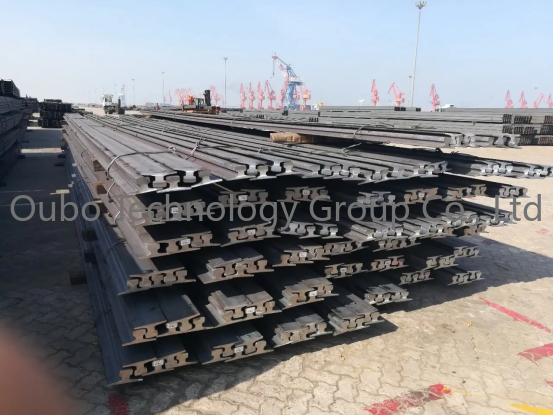

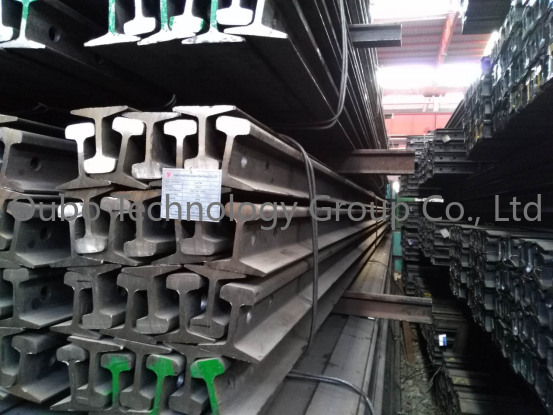

Steel Rail

The steel rail, also know as rail track, railroad rail, is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.

+86 18866110972

+86 18866110972

+86 18866110972

sales02@oubosteel.com

Get A Quote

Request Sample

Product Description

Standard	Sepc.	Material Typical Grade
UIC860	UIC54	700,900A,900B
UIC860	UIC60	700,900A,900B
EN13674.1	50E1	R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
	54E1
	60E1
	60E2
BS-11-1985	BS80A	700,900A,900B
	BS90A
	BS100A
AREMA	115RE	SS,HH,LA,IH
	136RE	SS,HH,LA,IH
	ASCE60	U71Mn
	ASCE85	U71Mn
GB 2585-2007	50kg/m	U71Mn U75V
	60kg/m
	75kg/m
TB/T2344-2012	50kg/m	U71Mn,U75V,U77MnCr U78CrV
	60kg/m
	75kg/m
GB 11264-1989	8kg/m	Q235
	12kg/m	Q235
	15kg/m	55Q, Q235
	18kg/m	55Q, Q235
	22kg/m	55Q, Q235
	24kg/m	55Q, Q235
	30kg/m	55Q, Q235
	38kg/m	50Mn, U71Mn
	43kg/m	50Mn, U71Mn
GB Crane rails	QU70	U71Mn
	QU80	U71Mn
	QU100	U71Mn
	QU120	U71Mn

Steel Rail-Chinese Standard:

Standard: GB11264-89
Size	Dimension(mm)				Weight (kg/m)	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Material	Length(m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6-12
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B	6-12
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q	6-12
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q	6-12
GB22KG	50.3	93.66	93.66	10.72	23.3	Q235B/55Q	6-12
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q	6-12
Standard: YB222-63
8KG	25	65	54	7	8.42	Q235B	6-12
18KG	40	90	80	10	18.06	Q235B/55Q	6-12
24KG	51	107	92	10.9	24.46	Q235B/55Q

Steel Rail-ASTMA1, AREMA Specifications:

Standard: ASTMA1, AREMA
Size	Dimension(mm)				Weight (kg/m)	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Material	Length (m)
ASCE 25	38.1	69.85	69.85	7.54	12.4	700	6-12
ASCE 30	42.86	79.38	79.38	8.33	14.88	700	6-12
ASCE 40	47.62	88.9	88.9	9.92	19.84	700	6-12
ASCE 60	60.32	107.95	107.95	12.3	29.76	700	6-12
ASCE 75	62.71	122.24	122.24	13.49	37.2	900A/1100	12-25
ASCE 85	65.09	131.76	131.76	14.29	42.17	900A/1100	12-25
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100	12-25
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100	12-25
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100	12-25
175LBs	109.86	152.4	152.4	38.1	86.8	900A/1100	12-25

Steel Rail-BS11: 1985 Specifications:

Standard: BS11: 1985
Size	Dimension(mm)				Weight (kg/m)	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Material	Length (m)
50 O	52.39	100.01	100.01	10.32	24.833	700	6-18
60 A	57.15	114.3	109.54	11.11	30.618	900A	6-18
75 A	61.91	128.59	114.3	12.7	37.455	900A	8-25
75 R	61.91	128.59	122.24	13.1	37.041	900A	8-25
80 A	63.5	133.35	117.47	13.1	39.761	900A	8-25
80 R	63.5	133.35	127	13.49	39.674	900A	8-25
90 A	66.67	142.88	127	13.89	45.099	900A	8-25
100 A	69.85	152.4	133.35	15.08	50.182	900A	8-25
113 A	69.85	158.75	139.7	20	56.398	900A	8-25

Steel Rail-Australian Standard Specifications:

Australian Standard Railway
standard:AS1085
Size	Dimension				Weight (kg/m)	Length (m)	Material
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Length (m)	Material
31KG	63.5	117.5	108	11.5	31.5	8-25	900A/1100
47KG	70	141.3	127	14.3	46.5
50KG	70	154	127	15	50.8
60KG	70	170	146	16.5	61
68KG	73.4	186	152	17.5	67.6
73KG	70	157	146	32	73.63
86KG	102	102	155	84.11	85.5
89KG	102	114	178	51	89.81

Steel Rail-South African Standard Specifications:

South African Standard Railway
standard:ISCOR
Size	Dimension				Weight (kg/m)	Length (m)	Material
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Length (m)	Material
15KG	41.28	76.2	76.2	7.54	14.905	9	700
22KG	50.01	95.25	95.25	9.92	22.542	9
30KG	57.15	109.54	109.54	11.5	30.25	9
40KG	63.5	127	127	14	40.31	9-25	900A
48KG	68	150	127	14	47.6	9-25
57KG	71.2	165	140	16	57.4	9-25

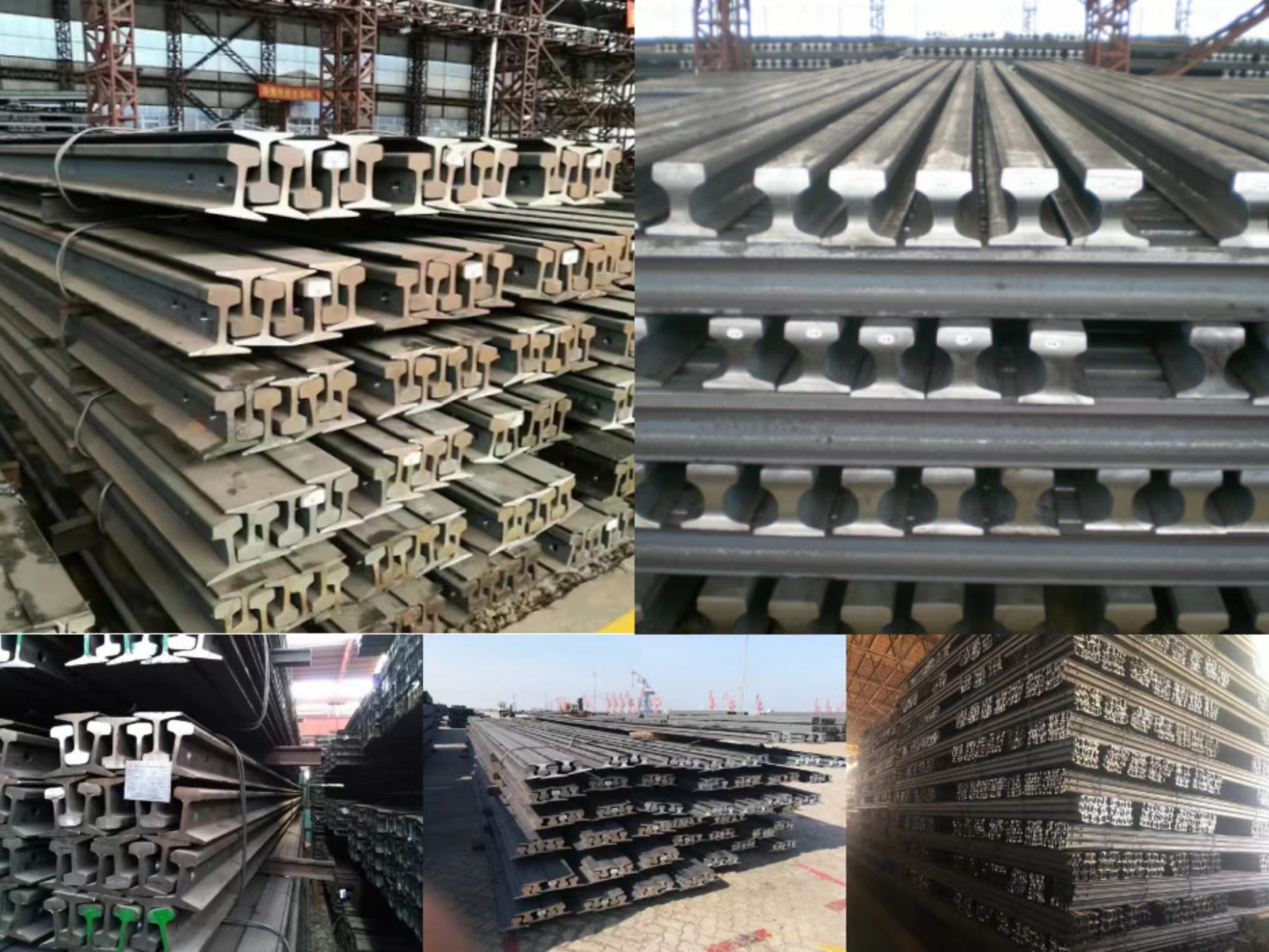

Product Show

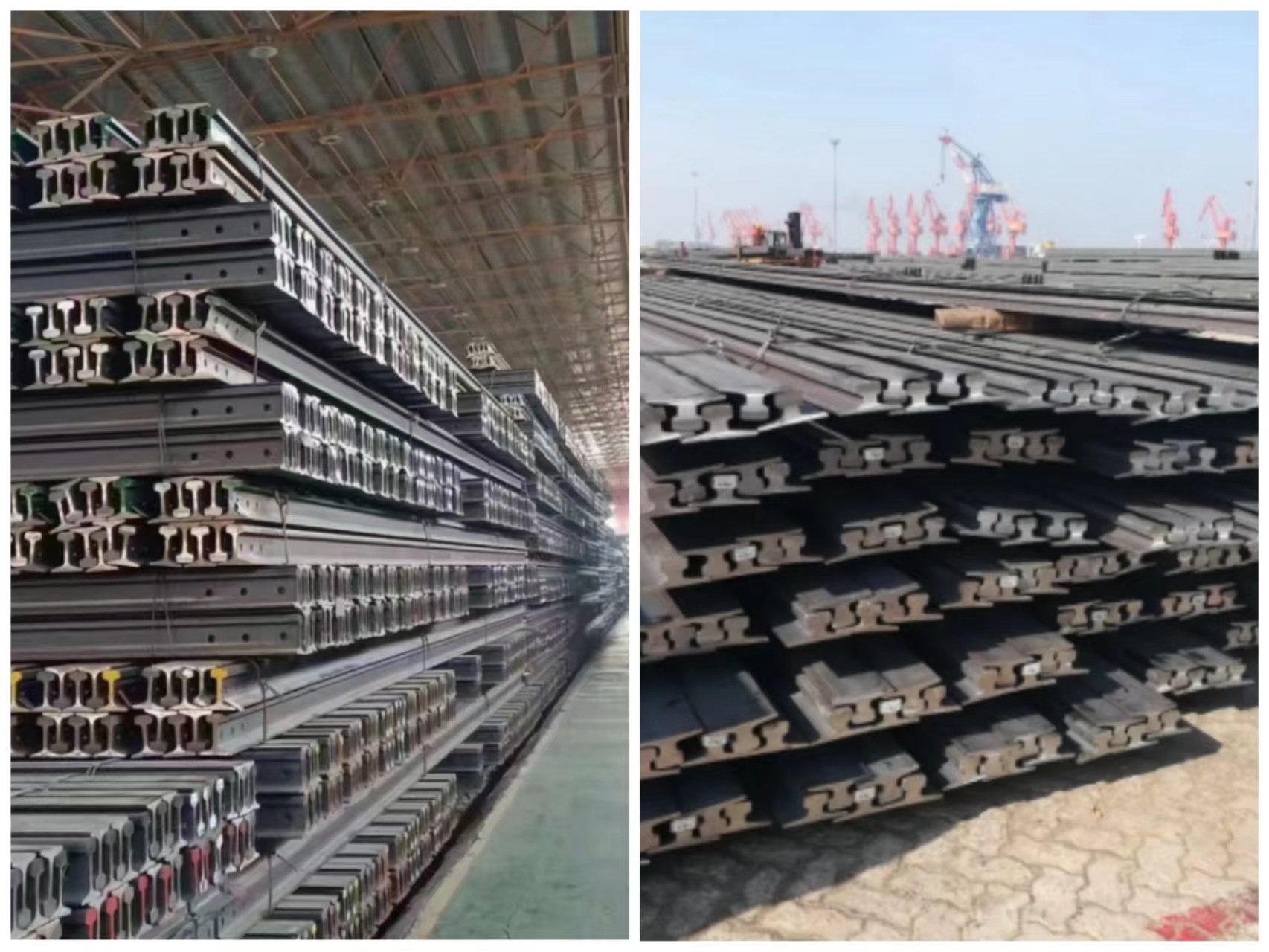

Packing And Shipping

Factory

Application

Steel rail products are employed in a broad spectrum of transportation functions, outlined by the following categories:

· Mass transit—passenger railways, underground rail, trams.

· Freight and logistics—bulk material transport.

· Cranes, fixed track lifting equipment, for short haul and high load transport.

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional steel manufacturer located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
