Steel Rail Introduction

Crane rail is used to withstand the concentrated pressure from the wheels and guide the wheels.There are many different type of rail and flat bar& square bar is one of them.Flat bar & square bar is mainly used as crane rail for bridge cranes, hoist cranes, overhead cranes, gantry cranes and semigantry cranes in commercial buildings, warehouses and structures, etc.it is featured by smooth running effect, easy assemble.

Flat bar & square bar are manufactured using high grade materials and is known for its sturdiness, durability and application specific design.

Flat bar&square bar is widely used in cranes,hoisting machinery,port machinery, railway machinery,cutain wall, engineering machinery, shipbuilding, elevator parts, crane rails and automobile industry.

Name	Schematic Diagram	Size	Height(mm) A	Width（mm） B	Weight(kg/m)

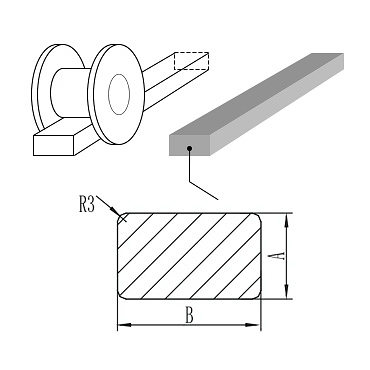

Flat Bar		40x30mm	30	40	9.42
		50x30mm	30	50	11.775
		60x40mm	40	60	18.84
		65x40mm	40	65	20.41
		70x40mm	40	70	21.98
		75x40mm	40	75	23.55
		80x60mm	60	80	37.68
		90x40mm	40	90	28.26
		100x60mm	60	100	47.1

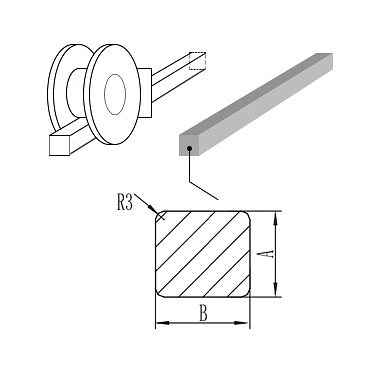

Square Bar		30x30mm	30	30	7.065
		40x40mm	40	40	12.56
		50x50mm	50	50	19.625
		60x60mm	60	60	28.26
		70x70mm	70	70	38.465
		80x80mm	80	80	50.24
		90x90mm	90	90	63.585
		100x100mm	100	100	78.5
		110x110mm	110	110	94.985
